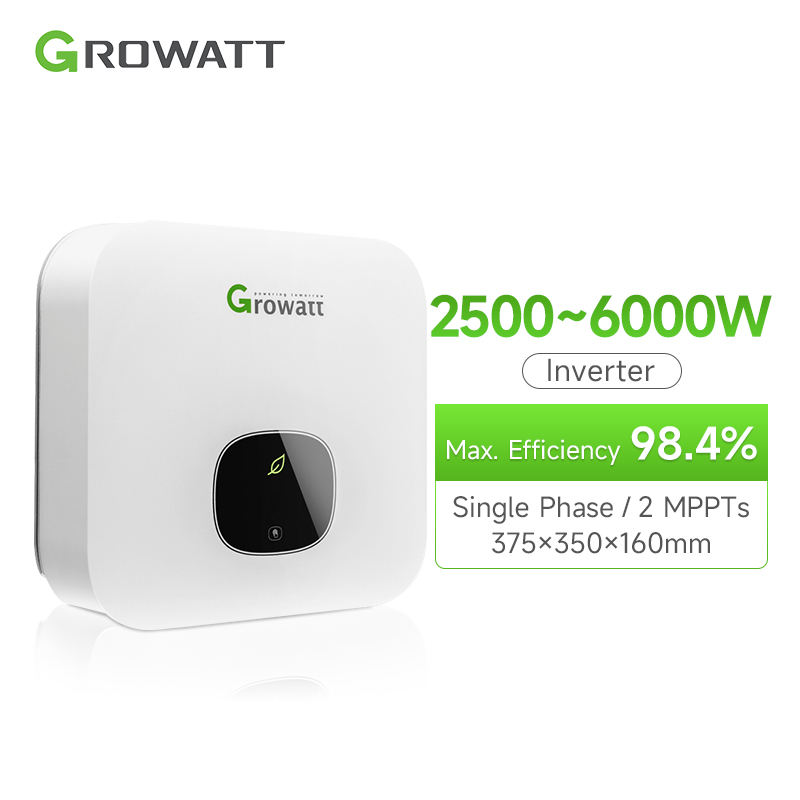

Growatt 2.5KW 3KW 3.6KW 4.2KW 4.6KW 5KW 6KW Solar Inverter
|
Datasheet |
MIN 2500TL-X |
MIN 3000TL-X |
MIN 3600TL-X |
MIN 4200TL-X |
MIN 4600TL-X |
MIN 5000TL-X |
MIN 6000TL-X |
|
Input data (DC) |
|||||||
|
Max. recommended PV power(for module STC) |
3500W |
4200W |
5040W |
5880W |
6440W |
7000W |
8100W |
|
Max. DC voltage |
500V |
500V |
500V |
550V |
550V |
550V |
550V |
|
Start voltage |
100V |
||||||
|
Nominal voltage |
360V |
||||||
|
MPP voltage range |
80V-500V |
80V-500V |
80V-550V |
80V-550V |
80V-550V |
80V-550V |
80V-550V |
|
No. of MPP trackers |
2 |
||||||
|
No. of PV strings per MPP tracker |
1 |
||||||
|
Max. input current per MPP tracker |
13.5A * |
||||||
|
Max. short-circuit current per MPP tracker |
16.9A |
||||||
|
Output data (AC) |
|||||||
|
AC nominal power |
2500W |
3000W |
3600W |
4200W |
4600W |
5000W |
6000W |
|
Max. AC apparent power |
2500VA |
3000VA |
3600VA |
4200VA |
4600VA |
5000VA |
6000VA |
|
Nominal AC voltage(range*) |
230V (180-280V) |
||||||
|
AC grid frequency(range*) |
50/60 Hz (45-55Hz/55-65 Hz) |
||||||
|
Max. output current |
11.3A |
13.6A |
16A |
19A |
20.9A |
22.7A |
27.2A |
|
Adjustable power factor |
0.8leading…0.8lagging |
||||||
|
THDi |
<3% |
||||||
|
AC grid connection type |
Single phase |
||||||
|
Efficiency |
|||||||
|
Max.efficiency |
98.2% |
98.2% |
98.2% |
98.4% |
98.4% |
98.4% |
98.4% |
|
European efficiency |
97.1% |
97.1% |
97.2% |
97.5% |
97.5% |
97.5% |
97.5% |
|
MPPT efficiency |
99.9% |
||||||
|
Protection devices |
|||||||
|
DC reverse polarity protection |
Yes |
||||||
|
DC switch |
Yes |
||||||
|
AC/DC surge protection |
Type III / Type III |
||||||
|
Insulation resistance monitoring |
Yes |
||||||
|
AC short-circuit protection |
Yes |
||||||
|
Ground fault monitoring |
Yes |
||||||
|
Grid monitoring |
Yes |
||||||
|
Anti-islanding protection |
Yes |
||||||
|
Residual-current monitoring unit |
Yes |
||||||
|
AFCI protection |
Optional |
||||||
|
General data |
|||||||
|

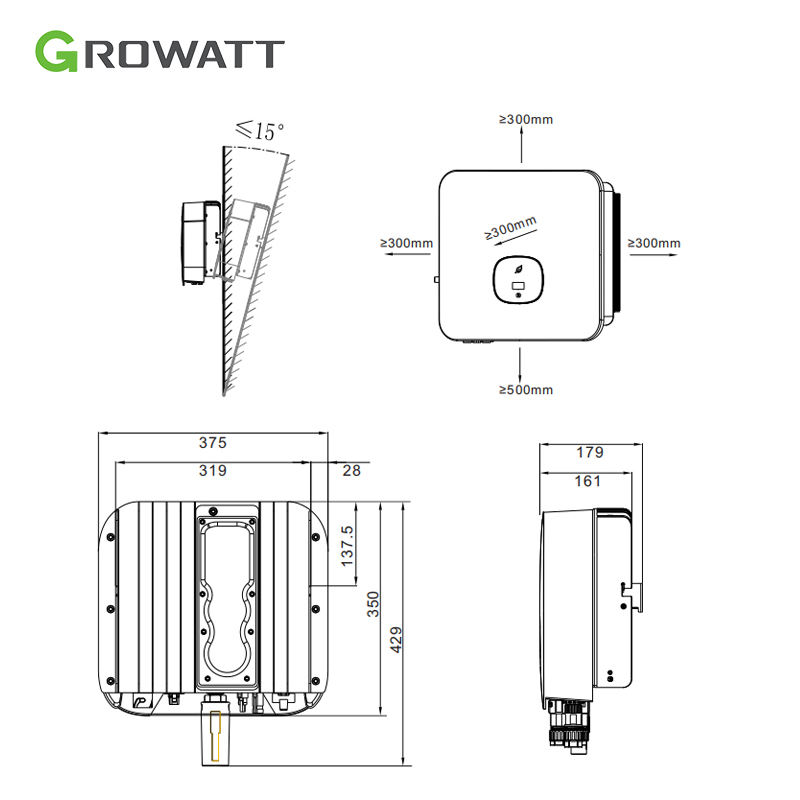

Dimensions (W / H / D) |
375/350/160mm |
||||||
|
Weight |
10.8kg |
||||||
|
Operating temperature range |
–25°C ... +60°C |
||||||
|
Noise emission (typical) |
≤35 dB(A) |
||||||
|
Nighttime power consumption |
< 1W |
||||||
|
Topology |
Transformerless |
||||||
|
Cooling |
Natural convection |
||||||
|
Protection degree |
IP65 |
||||||
|
Relative humidity |
0-100% |
||||||
|
Altitude |
4000m |
||||||
|
DC connection |
H4/MC4(Optional) |
||||||
|
AC connection |
Connector |
||||||
|
Display |
OLED+LED/WIFI+APP |
||||||
|
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN |
Yes/Yes/Optional/Optional/Optional /Optional |
||||||
|
Warranty: 5 years / 10 years |
Yes /Optional |
||||||
|
CE, IEC62109, VDE0126-1-1, AS4777, AS/NZS 3100, VDE-AR-N4105, CQC, IEC61683, IEC60068, IEC61727, IEC62116, INMETRO |
|||||||
