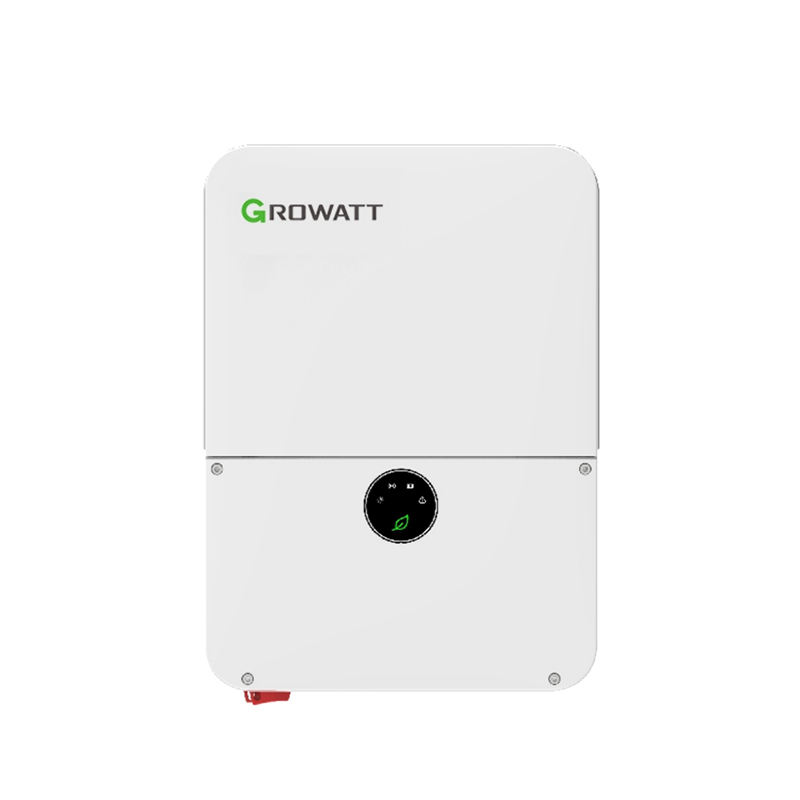

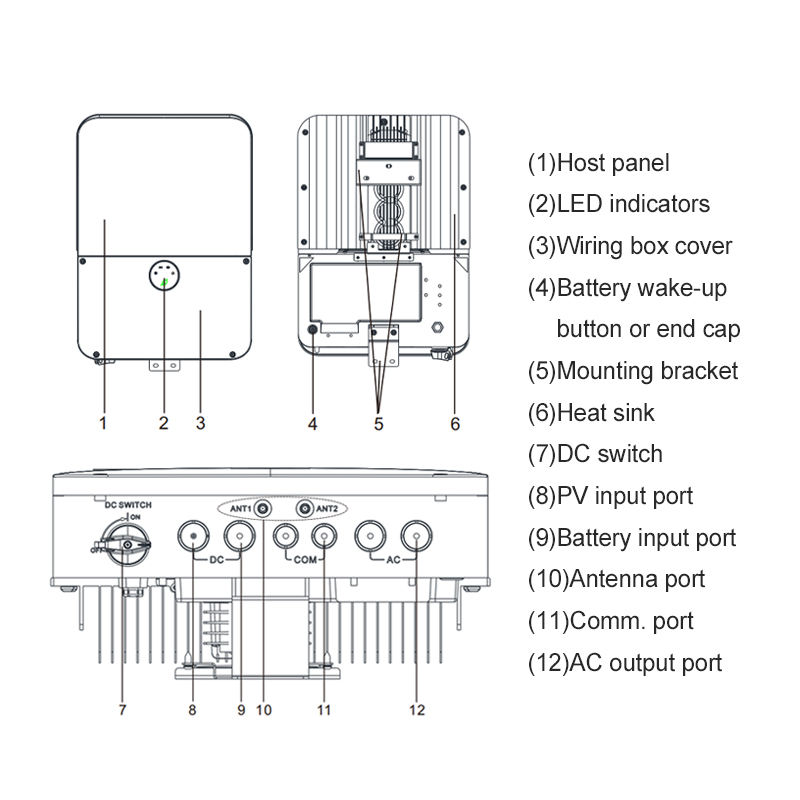

Growatt MIN 3KW 3.8KW 5KW 6KW 7.6KW Hybrid Solar Inverter
|
Datasheet |
MIN 3000TL-XH-US |
MIN 3800TL-XH-US |
MIN 5000TL-XH-US |
MIN 6000TL-XH-US |
MIN 7600TL-XH-US |
|
Input Data (PV) |
|||||
|
Max. Recommended PV Power(STC) |
6000W |
7600W |
10000W |
12000W |
15200W |
|
DC/AC Ratio |
2 |
||||
|
Max. DC System Voltage |
600V |
||||
|
Startup Voltage |
50V |
||||
|
Full load voltage range |
130-500V |
160-500V |
210-500V |
170-500V |
210-500V |
|
Nominal Voltage |
360V |
||||
|
Operating Voltage Range |
50~550V |
||||
|
No. of MPPT |
2 |
2 |
2 |
3 |
3 |
|
No. of PV Strings per MPPT |
2/2 |
2/2 |
2/2 |
2/2/2 |
2/2/2 |
|
Max. Input Current per MPPT |
13.5A |
||||
|
Max. Short-circuit Current per MPPT |
16.9A |
||||
|
Input/Output Data (Battery) |
|||||
|
I/O Voltage Range |
360V~550V |
||||
|
Nominal DC Voltage |
400V |
||||
|
I/O DC Current |
9A/9A |
11.5A/11.5A |
15A/15A |
18A/18A |
23A/23A |
|
I/O DC Power |
3200W |
4000W |
5200W |
6200W |
7800W |
|
Battery Technology |
LFP |
||||
|
Battery Capacity per Module |
9.9kWh |
||||
|
Scalability |
Up to 4 |
||||
|
Output Data (AC) |
|||||
|
AC Nominal Power@240V AC |
3000W |
3800W |
5000W |
6000W |
7600W |
|
AC Nominal Power@208V AC |
2600W |
3290W |
4330W |
5200W |
6580W |
|
Max. AC Apparent Power |
3000VA |
3800VA |
5000VA |
6000VA |
7600VA |
|
Nominal AC Voltage |
208V/240V |
||||
|
AC Voltage Range @208V AC @240V AC |
183V~229V/211V~264V |
||||
|
AC Grid Frequency |
50/60Hz |
||||
|
AC Grid Frequency Range |
45~65Hz |
||||
|
Max. Output Curren |
12.5A |
16A |
21A |
25A |
32A |
|
Power Factor(@Nominal Power) |
>0.99 |
||||
|
Adjustable Power Factor |
0.8 Leading~0.8 Lagging |
||||
|
THDi |
＜3% |
||||
|
AC Grid Connection Type |
L1/L2/N/PE |
||||
|
Output Data (Backup) |
|||||
|
AC Nominal Power |
3000W |
3800W |
5000W |
6000W |
7600W |
|
Max. AC Power Output |
3600VA |
4560VA |
6000VA |
7200VA |
9120VA |
|
Nominal AC Voltage |
240V |
||||
|
Max. Output Current |
16A |
16.7A |
25A |
30A |
38A |
|
THD |
5% |
||||
|
Efficiency |
|||||
|
Max. Efficiency |
98.0% |
98.0% |
98.2% |
98.4% |
98.4% |
|
CEC Efficiency@240V AC |
97.0% |
97.0% |
97.5% |
97.0% |
97.5% |
|
CEC Efficiency@208V AC |
96.5% |
97.0% |
97.5% |
97.0% |
97.0% |
|
Protection Devices |
|||||
|
DC Reverse-polarity Protection |
Yes |
||||
|
DC Switch |
Yes |
||||
|
DC Surge Protection |
Type II |
||||
|
Insulation Resistance Monitoring |
Yes |
||||
|
AC Surge Protection |
Type II |
||||
|
AC Short-circuitS Protection |
Yes |
||||
|
Ground Fault Monitoring |
Yes |
||||
|
Grid Monitoring |
Yes |
||||
|
Anti-islanding Protection |
Yes |
||||
|
Residual-current Monitoring Unit |
Yes |
||||
|
AFCI Protection |
Yes |
||||
|
General Data |
|||||
|

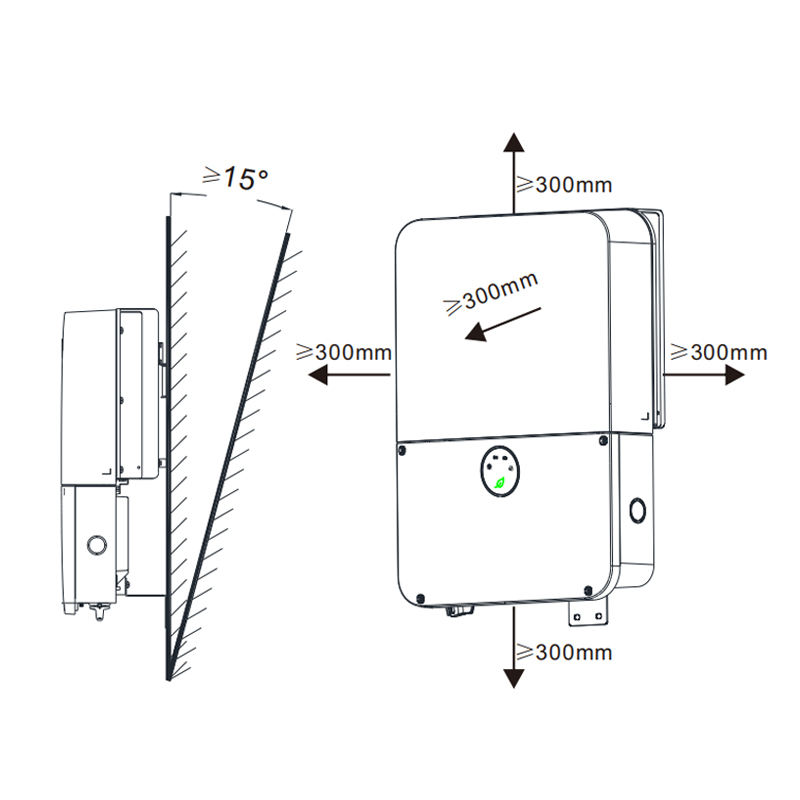

Dimensions (W / H / D) |
15.75/22.41/6.98 inch (400/569/170.5mm) |
||||
|
Weight |
32.3lbs (14.65kg) |
||||
|
Operating Temperature Range |
–13°F~+140°F (–25 °C ~ +60 °C) de-rating above 113°F |
||||
|
Altitude |
9843ft (3000m) |
||||
|
Internal Consumption at Night |
<1W (for PV inverter)/<5W (for storage inverter) |
||||
|
Cooling |
Natural Convection |
||||
|
Electronics Protection Degree |
NEMA4X (IP65) |
||||
|
Relative Humidity |
0~95% |
||||
|
Interfaces |
|||||
|
RS485 |
Yes |
||||
|
WIFI/4G Communication |
Optional |
||||
|
Warranty: 10 Years |
Yes(optional for extended 15 and 20 years warranty) |
||||
|
Revenue Grade Meter |
ANSI C12.20 (meet 0.5% accuracy |
||||
|
IEEE1547, CA Rule21, Rule14 (HECO Compliant), FCC Part15 Class B, U L1741, UL1741SA,CSA C22.2, UL1699B, UL1741 CRD, UL 9540 |
|||||
