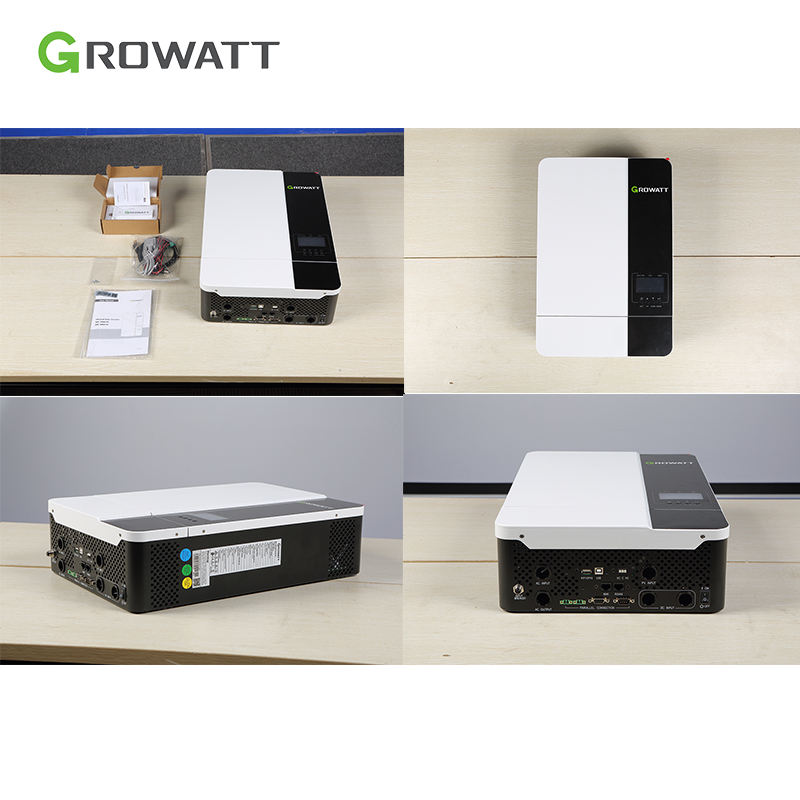

Growatt 3KW 5KW Off Grid Inverter Solar with Battery
|
Datasheet |
SPF 3500 ES |
SPF 5000 ES |
|
Battery Voltage |
48VDC |
|
|
Battery Type |
Lithium/Lead-acid |
|
|
INVERTER OUTPUT |
|
|
|
Rated Power |
3500VA/ 3500W |
5000VA/ 5000W |
|
Parallel Capability |
Yes, 6 units maximum |
|
|
AC Voltage Regulation |
230VAC ± 5% @ 50/60Hz |
|
|
Surge Power |
7000VA |
10000VA |
|
Efficiency (Peak) |
93% |
|
|
Waveform |
Pure sine wave |
|
|
Transfer Time |
10ms typical, 20ms Max |
|
|
SOLAR CHARGER |
|
|
|
Maximum PV Array Power |
4500W |
6000W |
|
MPPT Range @ Operating Voltage |
120VDC ~ 430VDC |
|
|
Number of Independent MPP Trackers/ |
1/1 |
|
|
Maximum PV Array Open |
450VDC |
|
|
Maximum Solar Charge Current |
80A |
100A |
|
AC CHARGER |
|
|
|
Charge Current |
60A |
80A |
|
AC Input Voltage |
230 VAC |
|
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
|
|
Frequency Range |
50Hz/60Hz (Auto sensing) |
|
|
PHYSICAL |
|
|
|
Protection Degree |
IP20 |
|
|
Dimension (W/H/D) |
330*485*135mm |
330*485*135mm |
|
Net Weight |
11.5 kg |
12 kg |
|
OPERATING ENVIRONMENT |
|
|
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
|
Altitude |
<2000m |
|
|
Operating Temperature |
0°C - 55°C |
|
|
Storage Temperature |
-15°C - 60°C |
|
