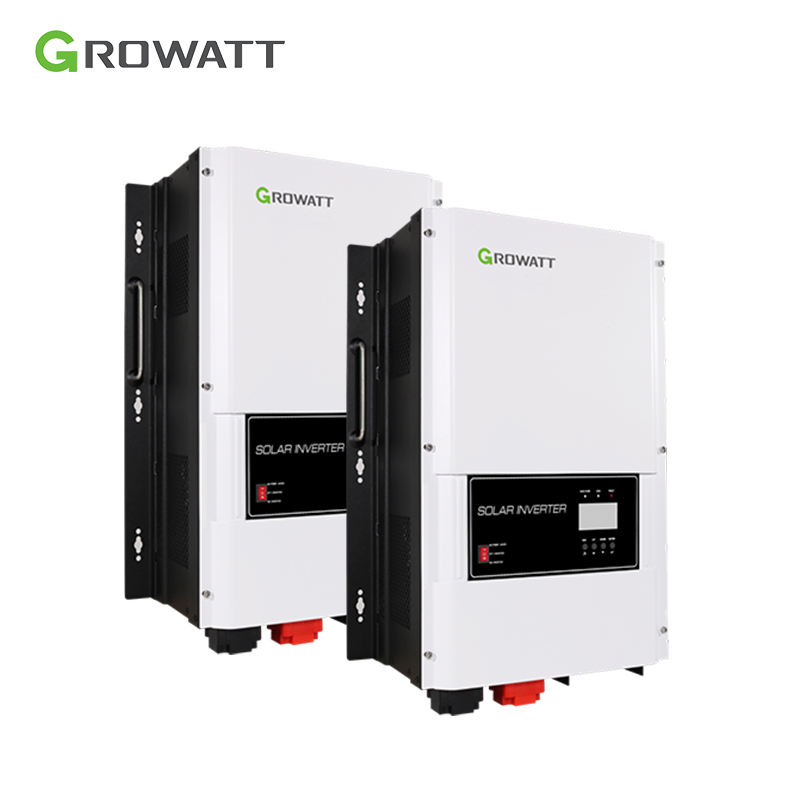

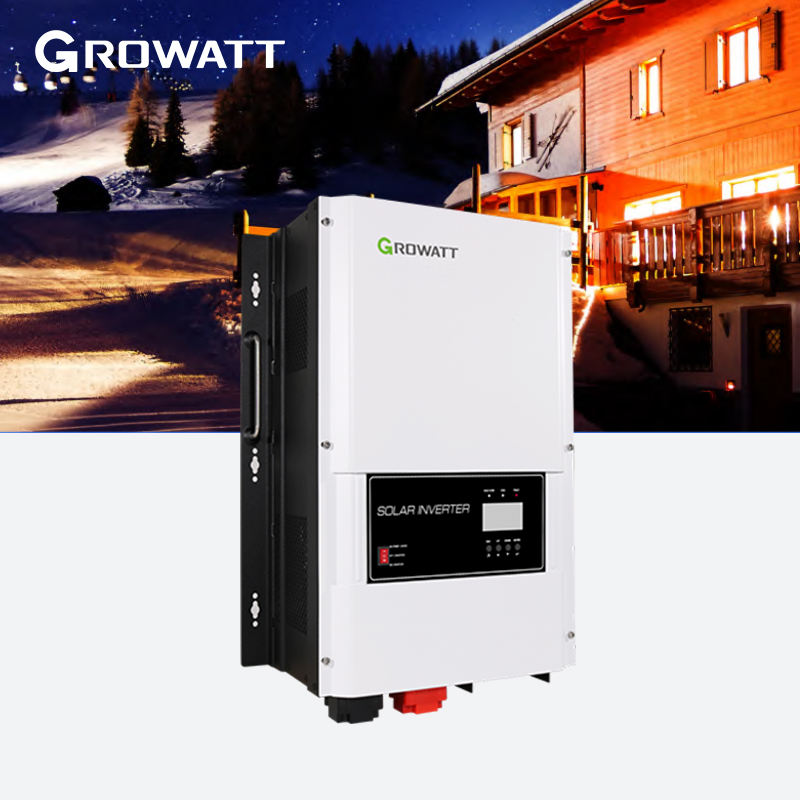

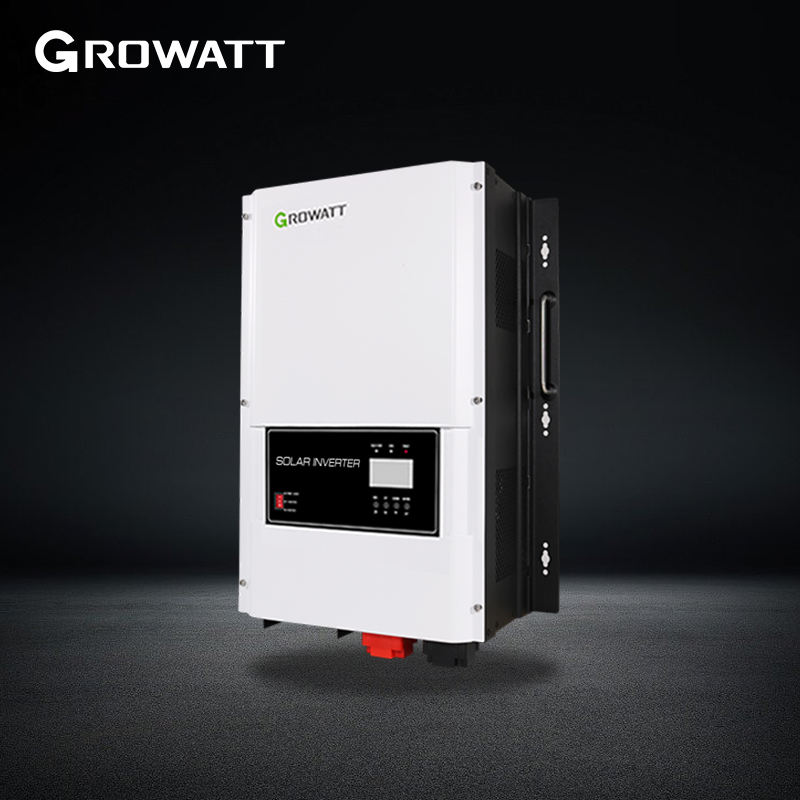

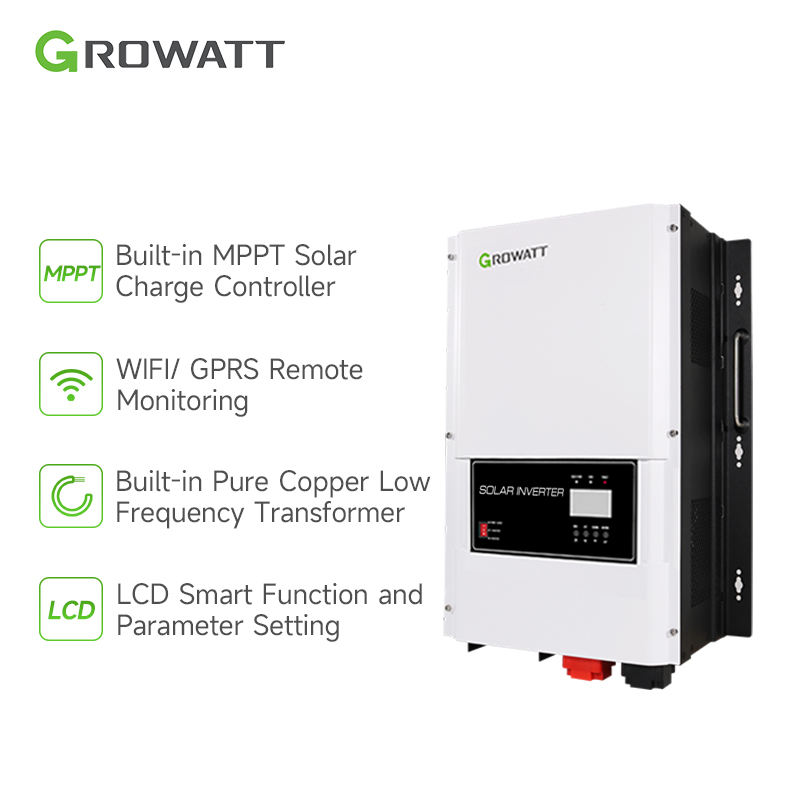

Growatt 4KW 6KW 8KW 10KW 12KW Off Grid Solar Inverter

Get Free Quote Now

PRODUCT DETAILS

Datasheet

SPF 4000T DVM

SPF 5000T DVM

SPF 64000T DVM

SPF 84000T DVM

SPF 10000T DVM

SPF 12000T DVM

Battery Voltage

48VDC

Battery Type

Lithium/Lead-acid

INVERTER OUTPUT

Rated Power

4KW

5KW

6KW

8KW

10KW

12KW

Surge Rating

12KW

15KW

18KW

24KW

30KW

36KW

Waveform

Pure sine wave/ same as input
(bypass mode

Nominal Output Voltage RMS

104-110-115-120/208-220-230-240VAC(optional)

Output Frequency

50Hz/60Hz +/-0.3 Hz

Inverter Efficiency(Peak)

>85%

Transfer Time

10ms(max)

SOLAR CHARGER

Maximum PV Charge Curren

80A

120A

Maximum PV Array Power

5000W

7000W

Number of independent MPP trackers/strings per MPP tracke

1/1

2/1

MPPT Range @ Operating Voltage(VDC)

60~145VDC

60~145VDC

Maximum PV Array Open Circuit Voltage

150VDC

150VDC

Maximum Efficiency

>98%

>98%

AC INPUT

Voltage

240VAC

Selectable Voltage Range

184~272VAC(UPS);154~272VAC(APL)

Frequency Range

50Hz/60Hz (Auto sensing)

Max. Charging Current

40A

50A

60A

70A

80A

100A

MECHANICAL SPECIFICATIONS

Protection Degree

IP20

Dimensions (W/H/D)

360/540/218mm

380/650/225mm

Weight

42kg

47kg

52kg

64kg

66kg

75kg

OPERATING ENVIRONMENT

Operation Temperature Range

0°C to 45°C
