Growatt 4KW 5KW 6KW 8KW 10KW 12KW Off Grid Solar Inverter
|
Datasheet |
SPF 4KT HVM |
SPF 5KT HVM |
SPF 6KT HVM |
|
Battery voltage |
48VDC |
48VDC |
48VDC |
|
Battery Type |
Lithium/Lead-acid |
Lithium/Lead-acid |
Lithium/Lead-acid |
|
INVERTER OUTPUT |
|||
|
Rated Power |
4KW |
5KW |
6KW |
|
Surge Rating (20ms) |
12KW |
15KW |
18KW |
|
Waveform |
Pure sine wave/ same as input (bypass mode) |
||
|
Nominal Output Voltage RMS |
220V/230V/240VAC(+/-10% RMS) |
||
|
Output Frequency |
50Hz/60Hz +/-0.3 Hz |
||
|
Inverter Efficiency(Peak) |
>85% |
||
|
Line Mode Efficiency |
>95% |
||
|
Power Factor |
1.0 |
||
|
Transfer Time |
10ms typical，20ms Max |
||
|
SOLAR CHARGER |
|||
|
Maximum PV Charge Current |
80A |
||
|
Maximum PV Array Power |
5000W |
||
|
Number of independent MPP trackers/strings per MPP tracker |
1/1 |
||
|
MPPT Range @ Operating Voltage |
60~145VDC |
||
|
Maximum PV Array Open Circuit Voltage |
150VDC |
||
|
Maximum Efficiency |
>98% |
||
|
AC INPUT |
|||
|
Voltage |
230VAC |
||
|
Selectable Voltage Range |
154~272VAC(for appliances);184~272VAC(for UPS) |
||
|
Frequency Range |
50Hz/60Hz (Auto sensing) |
||
|
Maximum Charge Curren |
40A |
50A |
60A |
|
MECHANICAL SPECIFICATIONS |
|||
|
Protection Degree |
IP20 |
||
|

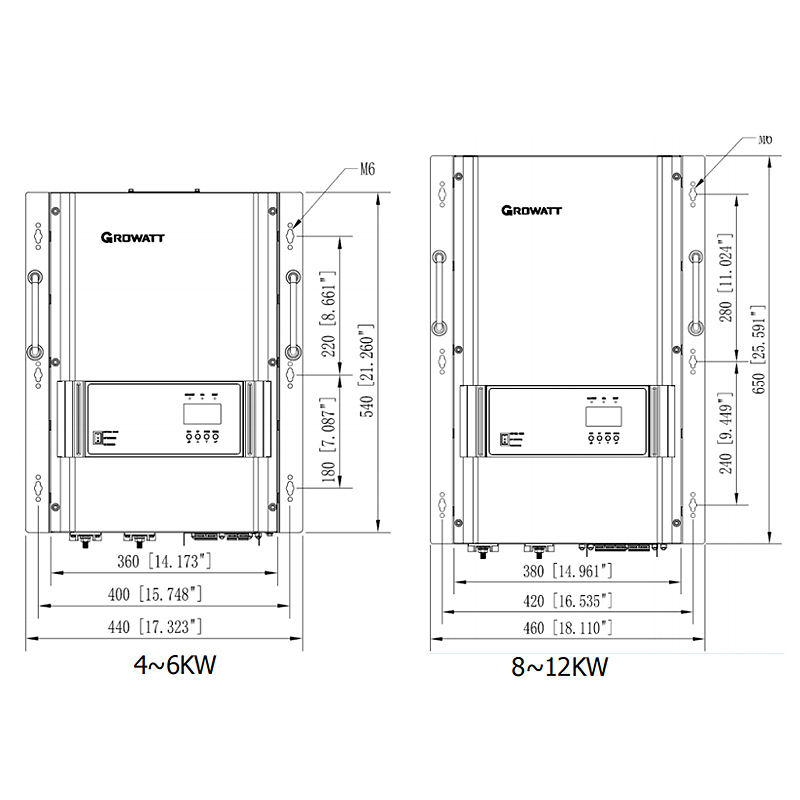

Dimensions (W*H*D) |
360/540/218mm |
||
|
Net Weight (Solar CHG) kg |
38 |
41 |
45 |
|
OPERATING ENVIRONMENT |
|||
|
|
0°C to 40°C |
||
|
Datasheet |
SPF 8KT HVM |
SPF 10KT HVM |
SPF 12KT HVM |
|
Battery voltage |
48VDC |
48VDC |
48VDC |
|
Battery Type |
Lithium/Lead-acid |
Lithium/Lead-acid |
Lithium/Lead-acid |
|
INVERTER OUTPUT |
|||
|
Rated Power |
8KW |
10KW |
12KW |
|
Surge Rating (20ms) |
24KW |
30KW |
36KW |
|
Waveform |
Pure sine wave/ same as input (bypass mode) |
||
|
Nominal Output Voltage RMS |
220V/230V/240VAC(+/-10% RMS) |
||
|
Output Frequency |
50Hz/60Hz +/-0.3 Hz |
||
|
Inverter Efficiency(Peak) |
>88% |
||
|
Line Mode Efficiency |
>95% |
||
|
Power Factor |
1.0 |
||
|
Transfer Time |
10ms typical，20ms Max |
||
|
SOLAR CHARGER |
|||
|
Maximum PV Charge Current |
120A |
||
|
Maximum PV Array Power |
7000W |
||
|
Number of independent MPP trackers/strings per MPP tracker |
2/1 |
||
|
MPPT Range @ Operating Voltage |
60~145VDC |
||
|
Maximum PV Array Open Circuit Voltage |
150VDC |
||
|
Maximum Efficiency |
>98% |
||
|
AC INPUT |
|||
|
Voltage |
230VAC |
||
|
Selectable Voltage Range |
154~272VAC(for appliances);184~272VAC(for UPS) |
||
|
Frequency Range |
50Hz/60Hz (Auto sensing) |
||
|
Maximum Charge Curren |
70A |
80A |
100A |
|
MECHANICAL SPECIFICATIONS |
|||
|
Protection Degree |
IP20 |
||
|
Dimensions (W*H*D) |
360/540/218mm |
||
|
Net Weight (Solar CHG) kg |
64 |
68 |
75 |
|
OPERATING ENVIRONMENT |
|||
|
|
0°C to 40°C |
||
